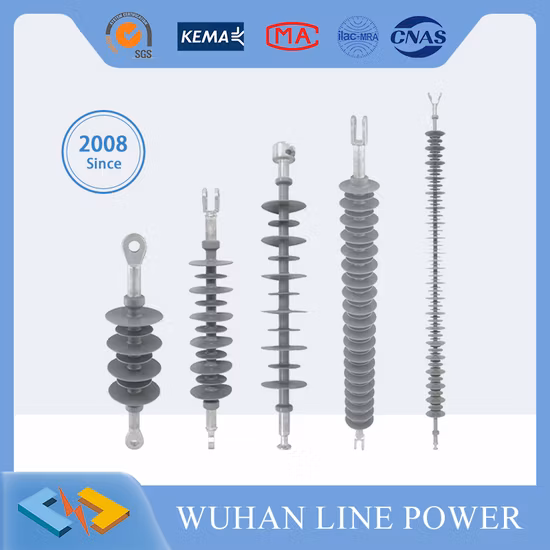

High Voltage Polymer Composite Insulator

Overview

Basic Info.

Model NO.	66kV
Size of Bearing Capacity	12kn
Certification	CCC, CE, ISO9001
Color	Red/Gray
Brand	Wishpower
Transport Package	Carton + Pallet
Specification	FIBERGLASS ROD, FITTINGS AND SILICONE RUBBER
Trademark	WISHPOWER
Origin	China
HS Code	85469000
Production Capacity	1.4 Million Pieces Per Year

Product Description

Product Description

Composite line post insulators consist of a cylindrical insulating core, bearing the mechanical load, protected by a polymeric housing, the loads being transmitted to the core by metal fittings. Despite these common features, the materials used and the construction details employed by different manufacturers may be different. Housing of composite line post insulator, external insulating part of a composite insulator providing the necessary creepage distance and protecting core from the environment.

Application

HV transmission lines,suitable for polluted areas

Variety scope: 10kV
Specified mechanical load: 2.5kN,5kN,
Color: Red,Gray,Blue,Yellow or according to customer's requirement.
Executive Standard:GB/T 19519-2014 IEC 61109Features

- Light weight,small volume,it can be easily transported and installed
- High mechanical strength
- Good performance of anti-pollution
- Free of maintenance
Fitting Type:

Technical Parameters

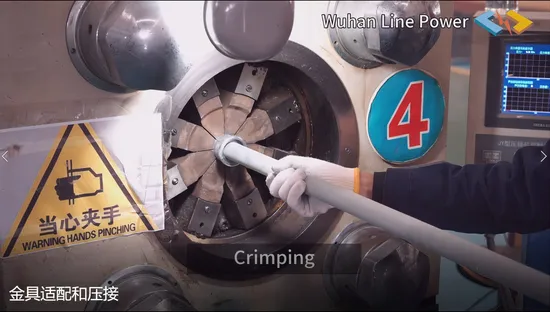

Our Workshop
